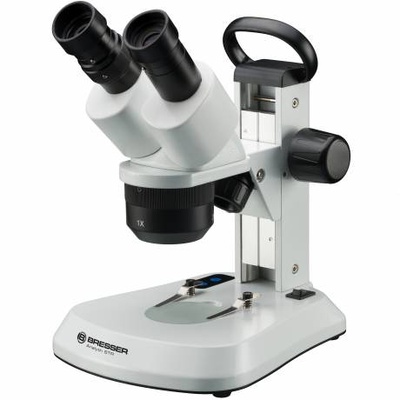

BRESSER Analyth STR 10x - 40x stereo microscope

The Analyth STR comes with 3 different magnifications, that can easily be switched by turning the objective. It is easy to change magnifications from 10x to 20x or 40x. The stereo microscope will show structured objects nicely in 3D, which is especially impressive. The low starting magnification of 10x is helpful when working with children and will show objects in full up to a size of 20mm. With the wide magnification range, the Analyth STR is a versatile instrument. You can use it to view insects, plants, minerals and much more. It is useful for hobbyists, in schools and more. Typical professional applications include quality control, gardening or farming (pest control), hydrobiology and much more.

The interpupilllary distance and the diopters can be adjusted to your needs. The eyepieces feature a big field of view of 20mm. They are equipped with rubber eyecups and have a locking screw to prevent loss or damage during transport.


The power supply can be achieved through the AC adapter, with the included USB power cable (using a USB power source like a laptop or powerbank) or with a set of 3 AA type batteries (batteries not included). This makes the microscope perfect for mobile use, e.g. outside in the garden or for biology field work.

Technical Data

FIELD OF APPLICATION
Field of application	Biology Botany Entomology Mineralogy Education
FOCUS GROUP
Focus Group	Beginners Advanced Amateurs Professional users
PRODUCT FAMILY
Product Family	Incident and transmitted light microscope
OPTICAL SPECIFICATIONS
Optical design	Stereo
Diopter setting	✓
ELECTRONICS, HARDWARE & SOFTWARE
Power supply1	220/240V AC Power supply 1.5V Batteries
Lighting5	Incident and transmitted light
LED lights	2
Dimmer	Dimmable lighting and switch for incident and transmitted light
GENERAL TECHNICAL DATA
Transportability	good
Eyecups	Rubber eyecups, fixed
View	Binocular
Interpupilar distance min.	50 mm
Interpupilar distance max.	77 mm
c height max.	50 mm
XY cross stage	No XY Stage
Object stage features	2 Object plates, exchangeable
Extended warranty	5 years
DIMENSIONS & WEIGHTS
Eyepiece Barrel Diameter	30.5 mm
1 Power adapter included. Batterie operation optionally. Batteries not included.
